prosolis 6f698ca226 Put the player on a real volume, and find the write window is the frame ...

ROADMAP K3. src/player/packed.s (2,898 B) brings up its own display, builds
its own 193-entry DMA chain, keeps its own frame clock off V-DISP and fetches
every record itself with READ(10) off a CZ-6BS1. The rig writes no picture
byte, no palette entry and no CRTC register.

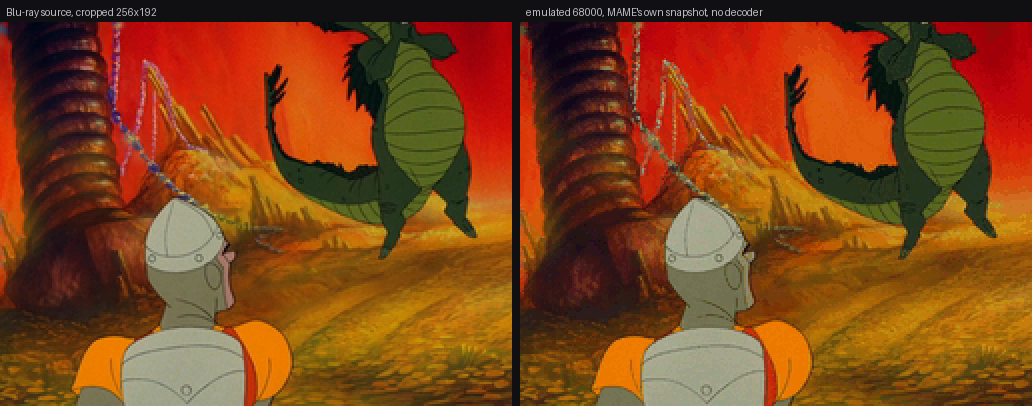

120 of 120 frames pixel-exact, every one compared, in both palette orders --
the gate had to grow to do it, because a packed frame is a LITERAL and the
codec's recursion was what made one comparison audit 120.

And the write window turns out to be the frame. A packed write requires R20
bit 11, buffer mode blanks the layer, and a DMAC-direct player holds the
window open for the whole data phase, so

    dark fraction of a slot = record bytes / (DATA-PHASE rate x slot)

which is 1.0 at the container's own 582.0 KB/s: every frame delivered, on
time, pixel-exact, and none of them displayed. The rate in that expression is
the BURST rate, a third hardware number B1 has no test for. It reverses 61.5's
ranking -- a packed player that DMAs to RAM and paints with the measured 27.3%
blit is on screen 72.7% of every slot at any rate, and the two are equal only
at 2,131 KB/s = 3.7x the wire.

And a held channel costs the frame clock half its ticks without the clock
being able to tell: 487 of 1,038 V-DISP edges lost, zero late frames reported,
the player believing 12 fps while the screen ran at 6.37.

FINDINGS 64. ROADMAP K4 opened and fenced behind B2.
check.sh ALL GREEN before and after.
