prosolis e4062ed294 Session 2: hybrid VQ codec, two quality profiles, three corrections ...

Answers session 1's critical-path question. Flat 4x4 VQ at k=256 was prototyped
and REJECTED by eye: Dirk's face disintegrates and ink outlines break into
4-pixel stair-steps. The 256-colour palettised frame is excellent, so the
palette was never the problem -- block VQ was.

Replaced it with a Cinepak-style hybrid: each 4x4 block is SKIP, one 4x4
codeword, four 2x2 codewords, or RAW literal pixels, chosen per block by
rate-distortion. The RAW escape makes lam=0 pixel-exact (measured 0.00 dB loss),
so the quality knob spans lossless to heavily-compressed in one bitstream.

Per the user's decision, ships TWO quality profiles from that one codec, one
decoder and one bitstream -- only the rate knob differs:

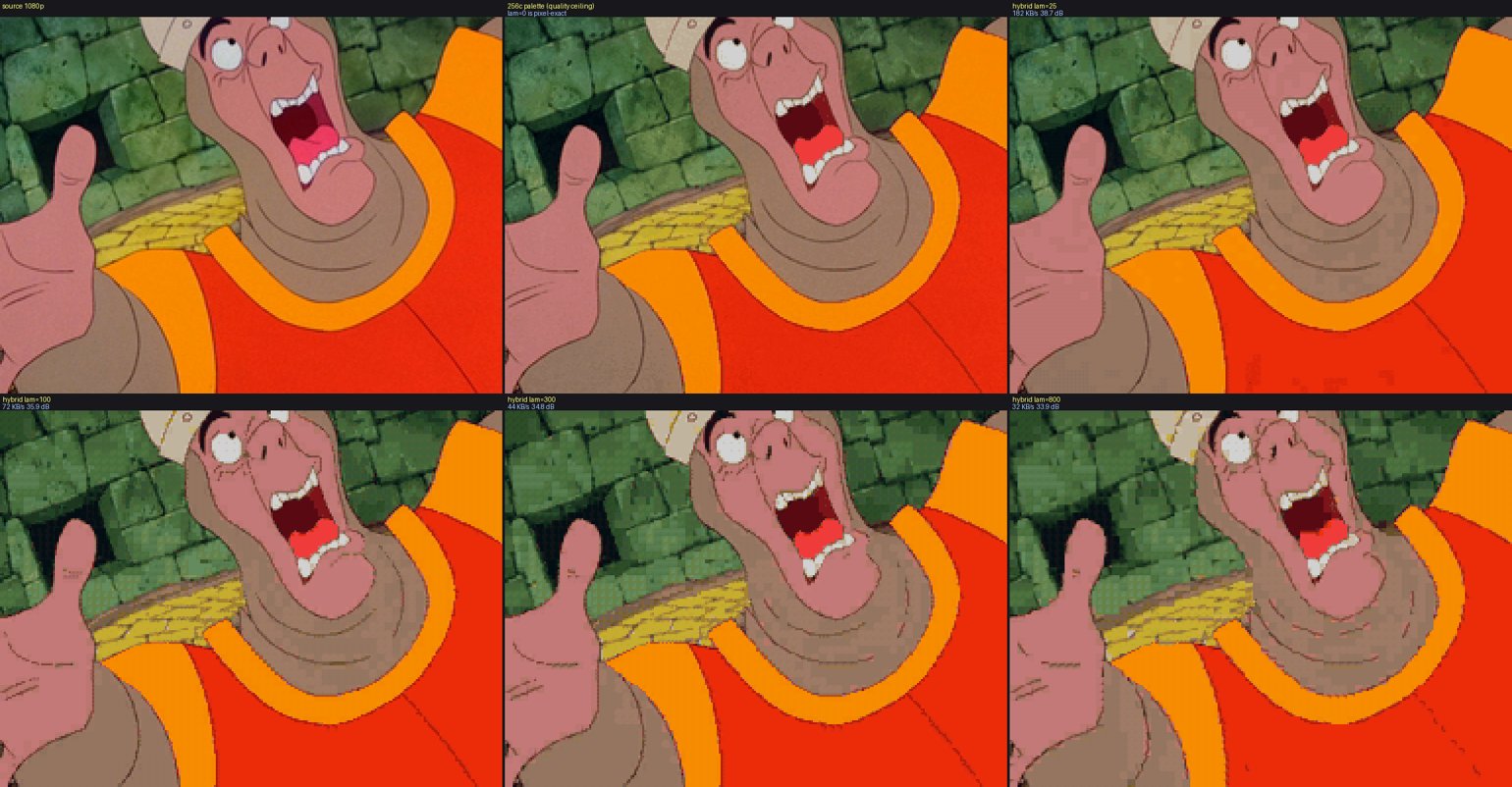

  sasi  45 KB/s  lam=300  34.8 dB   stock 10MHz ACE/EXPERT
  scsi  75 KB/s  lam=100  35.9 dB   Super/XVI or CZ-6BS1

Three corrections to earlier numbers:

1. Session 1's "183 KB/s at 12fps" was a bad extrapolation. Halving the
   framerate does not halve the bitrate -- decimation roughly doubles the
   per-frame delta. Re-measured directly: 340 KB/s for session 1's own RLE,
   247 KB/s for changed-spans+deflate. The lossless floor is 319 MB.

2. A FOURTH false-good result, same family as the three in FINDINGS 4:
   k=1024 codebooks appeared to buy +2.4 dB free, because the rate model
   charged 1 byte for a 10-bit index. Charging the true cost reverses the
   verdict -- k=256 wins at every matched bitrate, and by 5 dB at the low end
   where the SASI profile lives. k=256 ships.

3. Stream inventory: the ~3-5MB clips are 1.2-1.7s, not ~60s, and some 60s
   streams are menus, not content. Any survey must classify before averaging.

Also cleared both candidate sources for the game-logic layer: the SNES project
is MIT and DirkSimple is zlib, so the arcade scene graph can be imported and
the two transcriptions diffed against each other.

Encoder is working end-to-end: extract.py -> vq/vq_hybrid/ratectl -> encode.py,
emitting a big-endian DLX1 container the 68000 can parse with plain moves.

Claude-Session: https://claude.ai/code/session_01194oWYW8DQXK1SZ2DnChW6
