Findings — session 1 (2026-08-23)

All numbers here are MEASURED unless marked ESTIMATE or FOLKLORE.

---

1. Source material

DRAGONS_LAIR.iso — 16 GB, UDF 2.x, decrypted (no AACS dir). Loop-mounted read-only at /media/reala-misaki/BDROM via udisksctl loop-setup -r -f. (7-Zip cannot read UDF 2.x; use the loop mount.)

• 224 .m2ts streams, 1920x1080, MPEG-2, progressive, 23.976 fps
• Size histogram: 47 <5MB, 138 5-50MB, 22 50-150MB, 14 150-400MB, 3 >400MB
• The 185 sub-50MB streams are the arcade branching scenes already split into individual clips — we get scene boundaries for free.
• Big streams are full-feature playthroughs: 00215 (1376s), 00216 (1151s), 00223 (566s)
• Typical scene clip ~60s (00203/00205/00199), some ~100s (00164/00212)

Gotcha: clip durations vary wildly. Always read format=duration and seek relative to it. Seeking to a fixed offset silently yields 0 frames on short clips.

---

2. GVRAM layout [verified — see HARDWARE.md for source]

One 16-bit word per pixel position in EVERY color mode. Bit depth does not change VRAM bandwidth; it only subdivides the word.

addr = page_base + y*1024 + x*2 — adjacent pixels are 2 bytes apart in all modes.

Consequence: low bit depth buys no speed. 16-color mode is strictly worse than 256-color (same bus traffic, 1/16 the palette). Page-alias writes are hardware auto-masked, so 16-color needs no software read-modify-write — but it's still one word-access per pixel.

Chosen: 256 colors, 256x192 active area. In 256-color mode P0=low byte, P1=high byte of each word. Sacrificing page 1 as a double-buffer lets a move.l cover two pixel positions, enabling movem.l bursts (12 regs = 48 bytes = 24 pixels). Identical blit cost to 65536-color mode but half the on-disk data.

---

3. Content measurements (8 scenes sampled, 5s each at 40% into each clip)

metric	mean	p90
pixels changed / frame	20.1%	30.2%
blit cost	~64k cycles	~97k cycles
naive delta+RLE frame size	15.5 KB	19.6 KB

Budget is 833,333 cycles/frame @ 12fps on a 10MHz 68000.

=> THE CPU IS NOT THE BOTTLENECK. I/O IS.

Blit uses under 8% of budget. The naive row-span+RLE codec achieves only 3.2:1, giving 365 KB/s / 470 MB at 24fps (~183 KB/s / 235 MB at 12fps).

Per-scene variance is extreme: static dialogue ~30 KB/s, action ~700 KB/s. Any codec needs a hard bitrate ceiling, not just a good average.

"Shot on twos" — ASSUMPTION FAILED

Dedupe found zero duplicate frames across all 8 scenes (uniq=120/120, 24.0 fps effective). This Blu-ray is a restoration where every frame is unique. We do NOT get halved data for free. Decimation to 12fps must be explicit.

A weak alternation signature does exist (even-index pairs 40.7% vs odd 27.5%, ratio 1.5x, with occasional true-duplicate pairs at 0.03-0.19%), but it is irregular — Bluth mixed ones and twos; action is animated on ones.

---

4. MEASUREMENT TRAPS — read before trusting any pipeline number

Three separate false results were produced and caught this session. All three looked plausible. Guard against them:

1. Per-frame Floyd-Steinberg dithering destroys temporal coherence. Error diffusion is chaotic: a +/-1 input change cascades across the row and produces a completely different index pattern. First run reported 31.5% pixels changed with near-zero variance (median 31.6, p90 32.3, max 32.7) while source mean-abs-diff was 0.09 — i.e. visually identical frames. That flat variance is the tell: real animation has scene-dependent variance; noise does not. Use no dithering (cel art is flat) or ordered/Bayer (spatially fixed, temporally stable).

2. Temporal denoise smears motion. hqdn3d=4:3:6:4 — the 6:4 are temporal params. It flattened real motion, which then measured as "no motion" and produced an absurd 0.8 fps / 4 MB result. Use spatial-only: hqdn3d=4:3:0:0.

3. Exact-match dedupe fails on a noisy source. MPEG-2 grain means near-duplicate frames differ by +/-1 and are never bit-exact. Use a threshold on "% pixels differing by more than N levels", and pick the threshold from the observed distribution, not a guess. A 2% threshold ate genuine animation when mean consecutive change was only 0.9%.

Sanity rule: if a result has suspiciously low variance, or is suspiciously good, it is probably an artifact of the measurement, not a property of the content.

Scripts kept in tools/analysis/ — 01 and 02 are marked BROKEN deliberately as regression references; 03 and 04 are the correct ones.

---

5. Storage interface — the SASI/SCSI split

[Yasuma, X68030 internal SCSI controller]

• Interface: SCSI-1, 50-pin, 5 MB/s bus spec
• Controller: Fujitsu MB89352 SPC
• Transfer mode: DMA (via HD63450 DMAC)
• Bus: X68000 original bus, 16-bit @ 10MHz

Even on the X68030, SCSI runs at 10MHz 16-bit DMA. Storage bandwidth does NOT scale with CPU — the controller sits on the original bus. HD63450's 12.5MHz official ceiling is why the X68030 runs at 25MHz. An "HSCSI" TSR forces PIO/FIFO transfer instead of DMA but was marginal even at 25MHz.

Because it's DMA, streaming costs essentially no CPU — this stacks with the 8% blit utilisation. The 68000 really is nearly idle.

Model split — IMPORTANT

The 10MHz models (original X68000, ACE, PRO, EXPERT) use SASI, not SCSI. Built-in SCSI starts at the X68000 Super (1990) and continues through XVI, Compact, X68030. SCSI on earlier machines needs the Sharp CZ-6BS1 board in an I/O slot (MAME models this: -exp1 cz6bs1).

target	bandwidth	naive codec (365 KB/s)	VQ codec (~30 KB/s)
SASI (stock ACE/EXPERT)	~300-500 KB/s FOLKLORE	infeasible	comfortable
SCSI (Super+, or CZ-6BS1)	~1 MB/s FOLKLORE	tight but viable	trivial

Derived bounds (ESTIMATE): 16-bit @10MHz with 4-clock bus cycle = 5 MB/s absolute ceiling; HD63450 single-address DMA ~8 clocks/word => ~2.5 MB/s practical ceiling, before SCSI-1 async handshake and drive latency.

No measured benchmark was obtained — see STATUS.md. The ~300-500 KB/s and ~1 MB/s figures are folklore-grade; I could not find a primary measurement.

---

6. Codec decision: vector quantization (Cinepak-style)

Given ~8x CPU headroom and an I/O ceiling, spend CPU to buy bandwidth.

• Split frame into 4x4 blocks, encode each as a 1-byte index into a per-scene codebook
• Decode = 16-byte copy from a lookup table: nearly free
• A full frame = 256*192/16 = 3,072 bytes — a hard 16:1 floor before delta
• Add block-level delta on top; action scenes ~2-3 KB/frame
• => roughly 30 KB/s, ~40 MB total, with a deterministic bitrate ceiling

Divergence from the SNES project (below): use a per-scene codebook with delta updates, not a per-frame rebuild. We trade adaptivity for bandwidth because we have 2MB RAM to keep a codebook resident and CPU to spare.

Risk not yet evaluated: 4x4 VQ with a 256-entry codebook will visibly soften detail. Bluth's fine ink linework is what suffers. Prototype and eyeball before committing.

---

7. Comparison: astrobleem/SNES-SuperDragonsLairArcade

Reached the same core architecture independently — "512 tiles per frame" is vector quantization (8x8 codebook + tilemap). Good validation.

But: the SNES PPU has no bitmap mode, so tiles are forced on them by display hardware. The X68000 has a real linear framebuffer, so VQ is a compression choice we can tune or drop per-scene.

MSU-1 is a bandwidth cheat we don't have. It's a modern flash-cart coprocessor giving memory-mapped streaming the real SNES never had. Their budget: 512 tiles x 32 bytes (4bpp 8x8) + tilemap ~= 18 KB/frame => ~430 KB/s at 23.976fps. That's higher than the 365 KB/s we'd reject on SASI. (ESTIMATE: my arithmetic on their stated tile budget, not a measured figure.)

Where we're ahead: 256 simultaneous colors from a 65536 palette vs their 4bpp sub-palettes needing a tile-aware palette optimizer plus a spatial smoothing pass to hide 8x8 palette seams. That problem doesn't exist for us. Plus 68000@10MHz vs 65816@3.58MHz, and 2MB vs 128KB.

Most valuable thing in that repo is NOT the codec — it's data/events/: 516 chapter definitions across 29 scenes as XML, plus data/chapter_event_inventory.md. That's the arcade scene graph and input-timing structure, entirely hardware-independent — the whole game-logic layer we'd otherwise reverse-engineer from the arcade ROM.

TODO: check their license before planning to reuse it. Their 516 chapters are finer-grained than our 224 Blu-ray streams, so mapping their event table onto our footage means subdividing streams by timecode.

Caveat: all of the above is from README/repo-tree summaries, not their source.

---

---

Findings — session 2 (2026-08-23)

8. CORRECTION to session 1: halving the framerate does NOT halve the bitrate

Session 1 measured 365 KB/s for naive delta+RLE at 24 fps and wrote "(~183 KB/s at 12fps)". That extrapolation is wrong. Decimating to 12 fps roughly doubles the per-frame delta, so the rate stays nearly flat.

Re-measured directly on 12 fps decimated frames (4 scenes, 66 frames):

codec (all LOSSLESS w.r.t. the 256-colour frame)	B/frame	KB/s @12	22 min	ratio
raw 8bpp 256x192	49152	576	743 MB	1.0:1
session 1 row-span + RLE	29055	340	439 MB	1.7:1
XOR vs prev + deflate	30196	354	456 MB	1.6:1
changed-spans + deflate	21110	247	319 MB	2.3:1
changed-spans + LZMA	18759	220	283 MB	2.6:1

Session 1's own RLE re-measured at 12 fps gives 340 KB/s, not 183. Any plan that assumed 183 KB/s was based on a bad number.

Deflate-class entropy coding on top of the span payload is worth 1.4x over hand-rolled RLE, and LZ decode is cheap on a 68000 (byte copies), so the lossless floor is ~247 KB/s / 319 MB. That is infeasible on SASI and tight but real on SCSI.

9. Flat 4x4 VQ at k=256 is NOT acceptable — confirmed by eye

The risk flagged in 6 is real. At k=256, 4x4:

scene	palette-only PSNR	after VQ	VQ loss
00010	38.35	29.68	8.67 dB
00020	39.90	32.67	7.22 dB
00146	35.25	29.35	5.89 dB
00181	41.92	32.87	9.05 dB

Visually: Dirk's face disintegrates, teeth and eyes turn to mush, ink outlines break into 4-pixel stair-steps, colour bleeds across block boundaries.

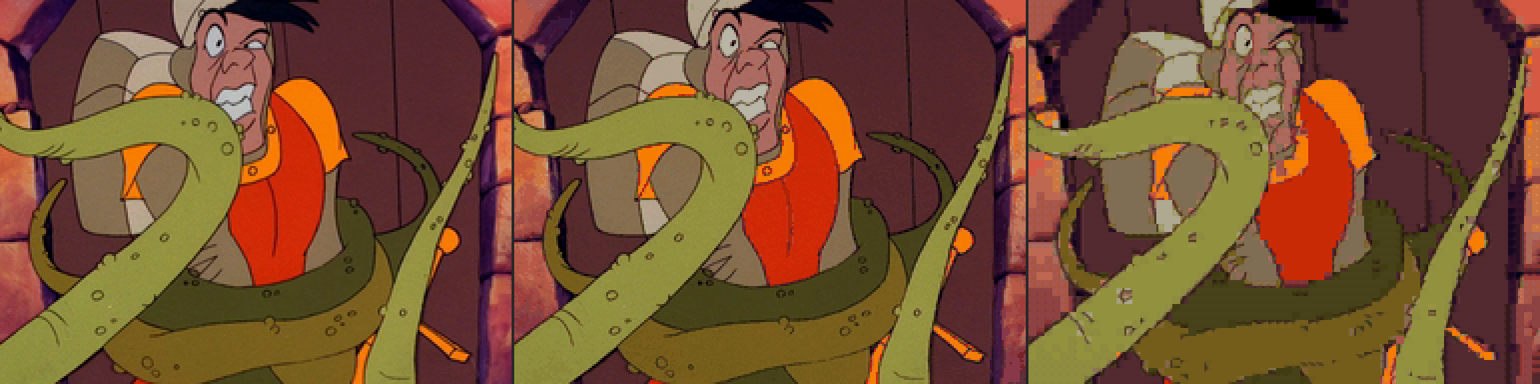

Left: 1080p source. Middle: 256-colour palettised 256x192 — the quality ceiling, and it is excellent. Right: flat 4x4 VQ at k=256. This is the result that killed the flat-VQ architecture.

Crucially, the 256-colour palettised frame itself looks excellent. Flat cel art with a per-scene median-cut palette and no dithering is near-transparent (35-42 dB). So the palette is not the problem and 256 colours is not the problem — block VQ is. The quality ceiling we should hold ourselves to is the palettised frame, not the 1080p source.

10. Hybrid VQ (Cinepak V1/V4 + SKIP) — this is the codec

Per 4x4 block, choose by rate-distortion: SKIP (reuse previous frame), V1 (one 4x4 codeword, 1 byte), or V4 (four 2x2 codewords, 4 bytes), with a 2-bit-per-block mode header. lam is the lagrangian rate knob.

Measured, k1=k4=256, 4 scenes (mean of the per-scene table in the session log):

lam	PSNR	loss vs palette	SKIP%	V1%	V4%	B/frame	KB/s @12
0 (max quality)	33.9	4.9	30.8	18.5	50.8	7574	88.8
200	31.9	5.9	44.0	37.6	18.4	4183	49.0
1000	31.6	7.3	47.4	47.7	4.9	2841	33.3
5000	25.5	13.3	55.6	44.4	0.0	2134	25.0

At a matched ~30 KB/s the hybrid beats flat 4x4 VQ by ~1 dB, and unlike flat VQ it keeps scaling: at 89 KB/s it reaches within 4.9 dB of the palette ceiling, which flat VQ cannot reach at any bitrate.

Note V4% collapses to 0 at lam=5000 — that is the knob doing exactly what it should: under a hard ceiling, detail blocks are the first thing sacrificed.

11. Codebook size sweep (flat 4x4, for reference)

block	k	PSNR	loss	key B	changed%	KB/s @12	codebook RAM
4x4	256	30.46	8.39	3072	52.7	28.5	8K
4x4	1024	32.89	5.96	3840	56.6	35.6	32K

+2.4 dB for 24K more RAM and 7 KB/s. With 2 MB of RAM, a 1024-entry codebook is cheap and clearly worth it. (RAM figure is the word-expanded form the blitter wants: k * 16 px * 2 bytes.)

12. Source framing — OPEN

The Blu-ray is full-frame 1920x1080 16:9 with no pillarboxing. The arcade original is 4:3. The extractor currently centre-crops 1440x1080, which is the arcade-faithful choice but discards image the 2006 remaster added. Options are crop (default), squash, wide in tools/encoder/extract.py. Not yet decided; needs an eyeball comparison against arcade reference.

13. Stream inventory correction

Session 1 said "typical scene clip ~60s". Sampled directly: the ~3-5 MB streams are 1.2-1.7 s clips — these are the individual arcade death/action moments, which is exactly the granularity the game logic needs. Some 60 s streams (e.g. 00203) are menu screens, not content. Any survey must classify menu vs content before averaging, or the bitrate numbers are diluted by static menus.

14. A FOURTH false-good result — and the correction

Add this to the 4 list. The mechanism was new but the shape was identical.

The false result: flat and hybrid VQ both showed +2.4 dB for k=1024 over k=256 at an apparently similar bitrate, which made a 1024-entry codebook look like an obvious win. The k=1024 quality ladder rendered from that run looked great at "45 KB/s".

The bug: the rate-distortion model in vq_hybrid.encode() charged 1 byte per codebook index unconditionally. A 1024-entry codebook needs a 10-bit index, stored as 2 bytes. So every k=1024 measurement understated the V1 and V4 payload by exactly 2x, and the lagrangian mode decision was choosing V4 on the belief that four codewords cost 4 bytes when they cost 8.

After charging the true index cost (idx_bytes is now explicit and defaults from the codebook size), matched-bitrate comparison on scene 00020:

KB/s	k=256 (1-byte idx)	k=1024 (2-byte idx)
~32-42	33.87 dB @ 32.5	28.91 dB @ 42.3
~44-52	34.80 dB @ 44.1	35.13 dB @ 52.5
~72-86	35.87 dB @ 72.2	36.51 dB @ 86.0

k=1024 buys +0.3 to +0.6 dB for +19% bitrate — a wash at best — and at the low end where the SASI profile lives it is 5 dB worse, because the 2-byte index floor dominates once V4 is priced out.

k=256 with 1-byte indices is the shipping choice. It is also the better decoder: a plain move.b index with no alignment case, and an 8 KB codebook instead of 32 KB.

The general lesson, again: the comparison was not wrong about VQ, it was wrong about cost. When a knob looks like a free win, check that the rate model is charging for it. Same failure family as 4.1-4.3: a plausible number produced by a pipeline that was not measuring what it claimed to measure.

15. Rate-distortion curve of the shipping codec (k=256, corrected)

Scene 00020 (Dirk screaming, close-up face — the hardest case for linework), and 00146. Includes the 2-bit-per-block mode header. No entropy coding yet.

lam	00020 PSNR	00020 KB/s	00146 PSNR	00146 KB/s	SKIP	V1	V4	RAW
25	38.68	182.2	31.04	193.5	~37%	~24%	~13%	~26%
100	35.87	72.2	29.04	72.5	~41%	~34%	~21%	~4%
300	34.80	44.1	28.28	44.4	~44%	~42%	~14%	0%
800	33.87	32.5	27.77	36.1	~46%	~48%	~5%	0%
2000	27.57	25.5	24.88	30.2	~50%	~49%	~1%	0%

Palette ceilings: 00020 = 39.90 dB, 00146 = 35.25 dB.

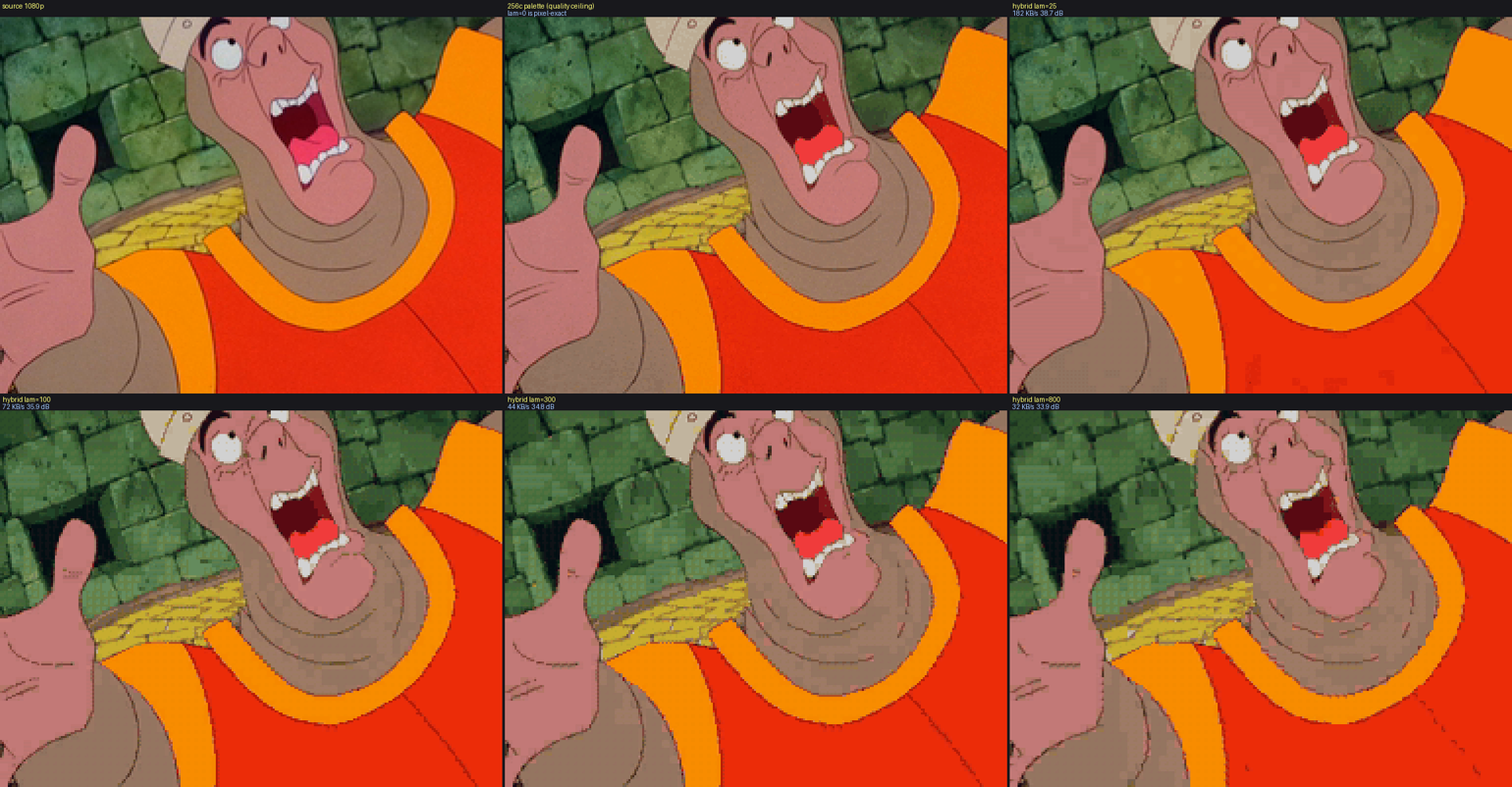

The shipping codec across the rate knob. Top: source, palette ceiling, lam=25. Bottom: lam=100 (scsi profile), lam=300 (sasi profile), lam=800. Both shipping profiles hold Bluth's linework; the failure only starts past lam=800.

Two things to read off this table:

• The cliff is between lam=800 and lam=2000. That is where V4 is priced out entirely and detail blocks have nowhere to go. Do not ship past lam~800.
• RAW is doing real work at high bitrate (26% of blocks at lam=25) and vanishes by lam=300. It is what makes the top of the curve reach the palette ceiling, and it costs the decoder nothing — RAW is the cheapest mode to blit.

16. Licences cleared for the game-logic layer

Both checked this session:

• astrobleem/SNES-SuperDragonsLairArcade — MIT, "Copyright (c) 2026 Chad Doebelin". data/events/ holds 516 XML chapter definitions with timing and event data. Reusable with attribution.
• icculus/DirkSimple — zlib. Independent from-scratch reimplementation of the game logic in Lua, scene/timing tables in game.lua. Also permissive.

Having two independent permissively-licensed transcriptions of the arcade scene graph is better than one: they can be diffed against each other to catch transcription errors before any of it is committed to 68000 tables.

17. The profiles were set far too low — and entropy coding is a CPU trap

Prompted by the user asking why the SCSI profile was only 75 KB/s. It should not have been. Two separate errors, one of them serious.

17.1 The profile bitrates were not derived from the hardware at all

They were read off the knee of the rate-distortion curve and then presented as though bandwidth-driven. Against the (folklore) bus figures from 5:

profile	was	bus figure	utilisation
sasi	45 KB/s	~300-500 KB/s	12%
scsi	75 KB/s	~1 MB/s	7%

Nothing justified leaving 90% of the pipe unused. Raised to sasi 110 KB/s (lam=60) and scsi 280 KB/s (lam=10), which is 35% and 28% utilisation — still conservative, because the bus figures are folklore.

17.2 CPU is NOT the reason to stay low — but entropy coding would be

Budget is 833,333 cycles/frame at 12 fps. At session 1's measured ~6.5 cycles per GVRAM pixel write:

work	cycles	% of budget
blit 20.1% of pixels (session 1's 24fps figure)	64k	7.7%
blit 40% of pixels (the same content at 12fps)	128k	15.3%
blit the FULL frame, every frame	319k	38.3%
deflate decode, ~30 KB/frame output	1,800k	216%
LZ4/LZSS decode, ~30 KB/frame output	450k	54%

Two conclusions, and the second one corrects 8:

• Raising the VQ bitrate is nearly free on CPU. Even a full-frame pixel-exact blit fits in 38% of budget, and VQ decode is table copies — RAW, the mode that dominates at high bitrate, is the cheapest mode to blit, not the dearest.
• The 247 KB/s "lossless changed-spans + deflate" figure in 8 is a compression upper bound, NOT a shippable design. Deflate's Huffman decode is bitwise and costs about 2.2x the entire frame budget on a 68000. Even byte-oriented LZ4 at 54% leaves too little beside a 38% blit. Do not plan on entropy coding. All profile bitrates are raw payload.

This inverts session 1's "the CPU is idle, I/O is the ceiling" for the decode path specifically: the blit is cheap, but any bit-oriented decompressor is not. VQ is the right architecture precisely because its decode is a table copy.

17.3 The hybrid at lam=0 IS the lossless codec

Measured, un-entropy-coded raw payload, and deflated for reference only:

scene	lam=0 raw	lam=0 deflated	lossless changed-spans+deflate	PSNR
00020	442.1 KB/s	274.5 KB/s	267.3 KB/s	39.90 = ceiling
00146	467.6 KB/s	223.2 KB/s	219.1 KB/s	35.25 = ceiling

The hybrid at lam=0 converges to within 3% of the purpose-built lossless coder. That confirms the architecture unifies: there is no separate lossless path to maintain, just the same bitstream with the knob open.

17.4 Full curve in raw (shippable) bytes

lam	00020 PSNR	00020 KB/s	00146 PSNR	00146 KB/s	RAW%
0	39.90 (exact)	442.1	35.25 (exact)	467.6	~76%
10	39.38	248.1	32.27	305.2	~44%
25	38.68	182.2	31.04	193.5	~26%
60	36.94	108.0	29.61	103.1	~10%
150	35.31	55.6	28.63	56.1	~1%
300	34.80	44.1	28.28	44.4	0%

17.5 This makes the blocked disk benchmark critical-path

Session 1 judged it "NOT on the critical path" because VQ at 30 KB/s was correct whether SASI did 300 or 600 KB/s. That reasoning no longer holds. The profiles now sit at 110 and 280 KB/s, close enough to the folklore ceilings that the error bars matter, and if SCSI sustains >=800 KB/s the correct scsi profile is lam=0 — pixel-exact video. Whether this port ships transparent or lossy on SCSI is now waiting on one measurement.
