Dragon's Lair — Sharp X68000 port

Porting Dragon's Lair to a stock X68000 (68000 @ 10MHz, 2MB, SCSI).

This is fundamentally a video codec problem, not a game-logic problem: the game logic is a scene table with branching input windows; the difficulty is pushing ~22 minutes of Don Bluth animation through a 10MHz 68000.

---

What it looks like

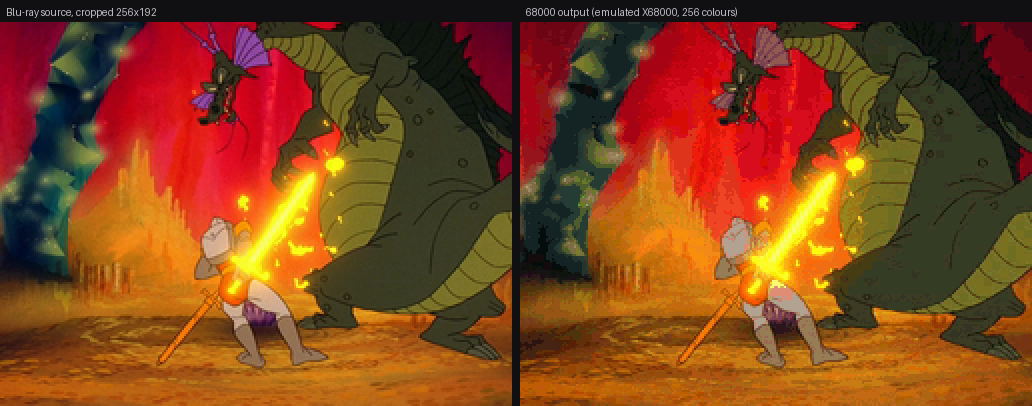

Left, the Blu-ray frame cropped to 256x192. Right, the same frame as the emulated 68000 actually drew it — 256 colours out of the X68000's 65536, one 16-colour-per-4x4-block codebook, decoded by src/player/decode.s from the container. Not a re-render: these are the pixels MAME had on screen, extracted from its own snapshot. 2x nearest-neighbour, no filtering.

The player, running. 119 frames out of a 256 KB ring buffer on an emulated stock 2 MB X68000, paced to a 12 fps frame clock, streamed from a host file at 488 KB/s — src/player/stream.s, no Lua in the decode path. Source on the left, the machine's screen on the right.

docs/img/player.webm — 119 frames, 12 fps, VP9

116 of those 119 frames are pixel-exact against tools/encoder/dlx.py's reference reconstruction. The other three are torn — the top of the picture is frame n and the bottom still holds frame n-1, because MAME captured the screen while the block loop was partway down it. That is not a rig artefact: decode.s writes straight to the displayed page (one display path, FINDINGS 28.1 — the dual-path plan is kept runnable as a counterexample precisely because it corrupts frames), so a real player tears the same way. tools/media/make_readme_media.py asserts the tear rather than trimming it — every differing pixel has to come from the previous frame, or it refuses to build.

What the decoder is actually doing. The same window with the block-mode map beside it: black = SKIP (costs nothing, draws nothing — the previous frame stands), blue = V1 (one codebook index for a whole 4x4 block), amber = V4 (four indices), red = RAW (sixteen bytes verbatim). The mode mix is what every cost table in docs/FINDINGS.md is really about — V4 costs 1.5x V1, and since session 8 the mode decision is charged both bytes and cycles, which is why a byte-rich profile buys its way out to RAW instead of V4.

docs/img/modes.webm — the same 119 frames with the mode map

Name the layer: everything above is emulated (MAME 0.277 x68000, -bios ipl10, stock 10 MHz / 2 MB), cross-checked frame-for-frame on a second CPU core (px68k's C68K). Nothing in this project has run on real hardware yet.

---

And the binding resource is the 68000's local BUS, not its clock. The decoder occupies 86.7% of it once instruction prefetch is counted, and 52 of the 53 frames that miss the 12fps budget miss it on the bus, not the CPU (FINDINGS 38). Read that before optimising anything for cycles.

The literal span with a fine tail (v7) is now IN the player: decode.s paints it, pixel-exact under both CPU cores, and it costs inside the decoder what blit.s said it would to 0.2% (FINDINGS 41).

The delivery path is built and tested too (FINDINGS 49). src/player/stream.s decodes the whole 120-frame window out of a 256 KB ring on a stock 2 MB machine, final frame pixel-exact, with the container in a host file rather than preloaded into RAM. The constraint turned out to be contiguity, not byte count — the block loop reads with a monotonically increasing a0 and no bounds check, so the ring needs the whole next record resident and contiguous, which is a condition no byte-counting buffer simulation can see.

And building it caught a live defect, then cost the project a constant. The shipping candidate is 496.7 KB/s; the pipe figure the design had been simulated against since session 2 was smaller, and nothing in the tree was comparing the two — the rate controller binds on clocks and has no pipe term at all, while the buffer sizing kept standing on a constant the design had stopped enforcing.

So the pipe constant is retired (session 18, USER DECISION). It was never a bus measurement — user-supplied, no provenance, 10% of SCSI-1's asynchronous rating (FINDINGS 42.1). It is gone as a default from every analysis tool and from stream.lua; --bus / --kbps / DLX_STREAM_KBPS are now required arguments, so no table can be scored against a rate its own output does not state. There is no working delivery figure, and that is the honest state.

What replaces it is a requirement rather than a constant: tools/analysis/19_ring_stream.py reports the zero-prefill pipe, the rate a medium must clear for a container to need no prefill. For the candidate that is 513.2 KB/s — a hardware acceptance test to measure a BlueSCSI against.

Bytes are not free, and the number that said they were was in the wrong unit. Session 13 found the pipe figure the design was built against was never a bus figure (SCSI-1 is 1.5 MB/s asynchronous) and concluded the span pass saturates at ~837 KB/s, 0/120 frames over budget. Session 14 found the disk debit behind that was charged per word of stream to a byte-wide port — the MB89352 is an 8-bit SPC, so the DMAC pays per BYTE, and the debit is 2x every table since FINDINGS 5. No 68000 bus cycle is shorter than four clocks, so the old figure was below a physical floor.

What survives, re-encoded honestly: 496.7 KB/s at 29.19 dB, 1 frame of 120 over the 12fps budget — and that one is frame 0, the intra frame, late on purpose. The remaining lever is not ours: whether the CZ-6BS1 wires the SPC's DACK to the bus's #EXACK, which decides 5 clocks/byte against 9, and with it 242 KB/s and 0.69 dB. Read FINDINGS 43 before quoting any rate figure.

And session 20 read the answer the machine already had. The X68000's IPL ROM programs all four HD63450 channels itself, and MAME boots the rig with it, so tools/analysis/21_iplrom_dmac.py decodes the configuration straight out of the image and gates on the bytes still being there. The audio channel is dual-address, 8-bit port, cycle steal without hold, one external request per byte: 16..19 clocks a byte, not 5 — which prices the ADPCM stream at 1.25%..1.48% of a frame and closes ROADMAP's "do this first" item. The disk channel is programmed identically. That is 16..19 clocks per delivered byte, above the whole 5..12 bracket the project costs the transport in, and at that price nothing fits. It is SASI and not the MB89352, so it does not settle the question — but a cheap configuration is now the thing that has to be shown, not the thing assumed. FINDINGS 52.

Green-light check: ./tools/bench/check.sh (~3 min, needs the Blu-ray mounted) re-runs both display regression tests, the rate-control drift test, the display-path coherency counterexample and a 120-frame 68000 decode, then prints ALL GREEN.

Reproducing this

No media ships in this repo, and none of it is redistributable. Bring your own Dragon's Lair Blu-ray. Everything else needed to rebuild every number and every picture above is here or is packaged.

You need:

the disc	loop-mounted read-only. udisksctl loop-setup -r -f DRAGONS_LAIR.iso — the tree was built against a decrypted UDF 2.x image (7-Zip cannot read UDF 2.x; use the loop mount)
python3	plus numpy and Pillow. Nothing else — the k-means is hand-rolled rather than pulling in sklearn
ffmpeg / ffprobe	frame extraction, and the README clips
MAME	tested on 0.277, with the x68000 ROM set. The rigs drive it headless via -autoboot_script
vasm (m68k, Motorola syntax)	vendored: tools/vasm/vasmm68k_mot is a Linux x86-64 binary, with the source tarball beside it to rebuild elsewhere

Then:

export DLX_BDROM=/path/to/your/mounted/bluray    # if not /media/$USER/BDROM
./tools/bench/check.sh                           # ~3 min, prints ALL GREEN

DLX_BDROM is honoured by every tool that reads the disc. Two stages are optional and skip rather than fail when their input is absent, because both live outside this repo:

• PX68K=/path/to/px68k — a px68k checkout, for the second-CPU-core gate. This is the cheapest strong test in the tree (seconds, no MAME, no ROMs), and it is what licenses the bus and cycle figures.
• IPLROM=/path/to/iplrom.dat — the X68000 IPL ROM, for the DMAC-configuration gate (FINDINGS 52). Defaults to ~/mame/roms/iplrom.dat.

To rebuild the stills and clips in docs/img/ you also need a paced recording run — see the header of tools/media/make_readme_media.py.

Scene selection is a hard-coded stream number, not a search: the gates use stream 00020 and 00223 of the disc's 224 .m2ts files, which are the ones FINDINGS §1 and §25 characterise. A different pressing may number them differently, and if so the green light will extract the wrong footage rather than fail — check that tmp/fr_singe/ looks like the Singe encounter (which is what the directory is named for) before trusting any figure.

Read first

• docs/FINDINGS.md — measured hardware facts, content statistics, codec decision, and a section on measurement traps that produced three separate false results. Read §4 before trusting any pipeline number.
• docs/STATUS.md — current state, working setup, blockers, next steps. Start here. It also lists what has been explicitly abandoned, so old ideas do not get re-proposed.
• docs/ROADMAP.md — the remaining work to a completion target, and which milestone that target is. Read it with STATUS, not instead of it: STATUS holds the measurements, ROADMAP holds the shape and goes stale first.
• docs/BENCHMARK.md — how to measure the storage subsystem, and why a bandwidth figure out of MAME would be meaningless.
• docs/HARDWARE.md — X68000 GVRAM/CRTC reference.

Layout

docs/            findings, status, hardware reference
tools/analysis/  measurement scripts, numbered in the order they were written
                 (01/02 marked BROKEN deliberately, kept as regression refs).
                 Run from the repo root — they import from tools/encoder/.
                 07 finds the hottest sustained window in a stream; 08 renders
                 source | decoded | block-mode map as .webm; 09 is the
                 rate-control drift gate (FINDINGS 26/27) and is part of
                 check.sh -- it exits non-zero if the encoder ever again
                 reports a reconstruction no decoder would produce.
                 10 is a COUNTEREXAMPLE, and exits non-zero by design: it
                 demonstrates that the two-display-path plan of FINDINGS
                 24.5/25.6 corrupts 70 of 120 frames (FINDINGS 28.1).
                 11 scores a container against the MEASURED per-mode block
                 costs without needing MAME; 12 prices the literal-span mode of
                 FINDINGS 30 against those same mode maps, and prints whether a
                 scene cut still fits at 12fps; 13 measures what fitting the
                 CPU budget costs in dB (FINDINGS 31) and caches H.build so the
                 search loop is seconds, not minutes.
                 14 prices the HD63450 array-chain against the v6 and v7
                 spans (FINDINGS 39/40) and prints the sensitivity that decides
                 it -- v7 is measured, and takes 37 of the 43 frames the DMAC
                 would, so the DMAC stays dropped;
                 15 measures how much of the 68000's LOCAL bus the decoder
                 occupies (FINDINGS 38) and exits non-zero if its derived
                 model stops matching the harness's measurement.
                 16 is the DLX3 span container ROUND-TRIP gate (part of
                 check.sh): it encodes, writes the container, reads it back with
                 the reference decoder and fails if a pixel differs -- or if it
                 emitted too few spans to have tested anything. 17 prices the
                 spans the encoder ACTUALLY emitted, with no selection model,
                 which is what 12 and 14 could only simulate.
                 18 measures what a 16-colour text-plane literal would cost in
                 dB, and closes that direction (FINDINGS 46.3).
                 19 is the RING-BUFFER simulation, and it supersedes 09_buffer_
                 sim.py's question rather than repeating it: it models the ring's
                 ADDRESSES, because src/player/ needs each record contiguous and
                 not merely resident. It reports the ZERO-PREFILL PIPE -- the
                 rate a medium must clear for a container to need no prefill --
                 and warns explicitly when demand exceeds supply on the MEAN,
                 where a "required prefill" figure would flatter a sustained
                 overrun. Its wrap count and hole size match tools/bench/
                 stream.lua's, measured on a real 68000, to the digit.
                 buscost.py is the shared bus-cycle table both import; the
                 per-BLOCK constants live in tools/encoder/vq_hybrid.py and are
                 imported, never copied (session 12 corrected one of them).
tools/bench/     MAME Lua injection harness + 68000 benchmark sources.
                 `check.sh` re-runs both display regression tests (~40 s).
                 `blit.s`/`blit.lua` time the full-frame GVRAM blit on the
                 68000 itself (FINDINGS 24) — not part of check.sh, because
                 wall timings would make the green-light check host-sensitive.
                 `span.sh` (prep_spans.py + span.lua + blit.s v5/v6/v7)
                 measures the literal-span mode the same way (FINDINGS 30 and
                 40, ~30 s); it also asserts that every one of its 36 timing
                 configs drew a pixel-exact frame, the count taken from the
                 generated metadata so a new config cannot weaken the gate.
                 v7 is v6 with a second, 2-pixel chain for the span tail:
                 66.0 cycles/span + 9.143 per coarse pixel + 9.978 per fine
                 pixel, MEASURED, which is the win FINDINGS 39.4 predicted.
                 `crtc_mode.lua` is the single source of truth for CRTC R00-R08
                 and R20 — do not write CRTC values anywhere else.
                 `prep_dlx.py`/`decode.lua`/`verify_decode.py` load, time and
                 verify `src/player/decode.s`; the verify pass is in check.sh.
                 `prep_stream.py`/`stream.lua` do the same for `stream.s`, but
                 lay the container out as a DISK in a host file and feed it
                 through a bounded ring at a modelled pipe rate -- so the rig is
                 no longer bounded by the emulated machine's RAM, and a stock
                 2 MB machine runs the whole window. `dlxload.py` holds the
                 codebook/palette load-time maths both preps share.
tools/bench/c68k/ headless px68k C68K harness -- a SECOND emulator for every
                 68000 cycle figure (FINDINGS 37). Links only px68k's CPU core:
                 no SDL, no ROMs, no emulated machine. `make PX68K=~/src/px68k`
                 then `run.sh`; `verify_c68k.py` checks the decode is
                 pixel-exact, which is what licenses the cycle numbers. It also
                 counts BUS cycles, which MAME cannot report.
                 The Makefile's -no-pie and the harness's MAP_32BIT arena are
                 load-bearing: C68K truncates host pointers to 32 bits.
tools/vasm/      vasm m68k assembler (built from source)
tools/encoder/   hybrid VQ encoder + DLX3 container writer (working).
                 spans.py is the v7 span geometry, selection and serialiser, and
                 the single place the chain layout is stated on the encoder side
                 -- it must match blit.s/decode.s (11 coarse units of 24 px, 11
                 fine of 2).
                 DLX2 4-byte-aligns every frame record: an odd `move.l` is an
                 ADDRESS ERROR on a 68000, not a slow read (FINDINGS 28.3).
                 dlx.py is the reference DECODER -- ground truth for the 68000.
src/player/      decode.s: the 68000 DLX3 decoder, PRELOADED-stream front-end.
                 stream.s: the same decoder behind a bounded RING (FINDINGS 49).
                 Both include frame.i (the block loop and span chain) and geom.i
                 (the constants) so there is exactly ONE copy of the bytes every
                 cycle constant in FINDINGS 24/30/40/41 is fitted to. check.sh
                 asserts decode.s still assembles to the same 1,296 bytes.
                 decode.s: the 68000 DLX3 decoder. Pixel-exact under MAME and
                 px68k's C68K core, blocks and v7 literal spans both. The span
                 pass is blit.s v7 verbatim -- the same instruction sequence the
                 66.0/9.143/9.978 fit was measured on, so do not tidy it.
                 See FINDINGS 28, 31, 40 and 41.
assets/          extracted frames/audio (gitignored)

Encoder

python3 tools/encoder/extract.py 00020 /tmp/fr 12 crop
python3 tools/encoder/encode.py  /tmp/fr out.dlx --profile scsi --preview p.png

Two budgets, not one. --kbps is the quality rate point and --span-kbps is the ceiling the span pass may draw on. They are different things: the profile is chosen, the pipe is hardware, and bytes between them buy a better picture if spent on lam, the 68000's deadline if spent on spans, and nothing if left unspent. Spans run before mu because a span pays in bytes and mu pays in picture (FINDINGS 41.2).

One profile: scsi, 280 KB/s. The 110 KB/s sasi profile was dropped in session 9 on capacity, not bandwidth — a SASI volume is limited to 40 MB, and the game's 22.8 minutes of footage is 146 MiB even at that rate (FINDINGS 32). The rate point may return under another name once the delivery medium is settled, because a 1x CD-ROM sustains ~150 KB/s and CD-ROM is the only period medium with the capacity.

The profile bitrate is a ceiling: lam is bisected per frame under a leaky bucket, so the profile's lam is a quality floor rather than a setting (--fixed-lam opts out).

But at --spans all none of that binds. A 32-frame bucket emits the same container byte for byte as an 8-frame one, and lam never leaves its floor on any frame of the reference window: the rate is set by the span pass and by mu, not by --kbps or the bucket (FINDINGS 44.3). Two known unit inconsistencies on that side are implemented and default OFF because they measure as a wash -- --joint-decide (the per-block lagrangian prices a byte at lam + mu*c rather than lam) and --joint-bucket (the bucket may not lend clocks it cannot repay). FINDINGS 44.

An encode is ~95% k-means; a 120-frame window is ~29 s, of which ~22 s is training the two codebooks (FINDINGS 44.5).

There are two ceilings, on two different axes. The second is the 68000's decode budget: mu is bisected per frame against 833,333 cycles so the frame also decodes in time, which takes the worst sustained window from 37 frames over budget to 1 for 0.62 dB at scsi (FINDINGS 31). It is on by default; --no-cpu-fit restores session 7 behaviour. Unlike bytes, cycles have no bucket — there is no double buffer to decode ahead into, so it is a hard per-frame ceiling. The codec is a Cinepak-style hybrid: each 4x4 block is coded as SKIP, one 4x4 codeword, four 2x2 codewords, or RAW literal pixels, chosen per block by rate-distortion.

The RAW escape means lam=0 is pixel-exact against the palettised frame, so the quality knob spans lossless to heavily-compressed without changing the bitstream.

Profiles are derived from a bandwidth figure, not chosen by eye:

python3 tools/encoder/profile_gen.py --bw-mbps 4 --name scsi

On reading docs/FINDINGS.md: it is append-only and several later sections overturn earlier ones. Superseded sections carry a blockquote at the top pointing to the correction — heed those, especially 18 (reversed by 21).

Source media (DRAGONS_LAIR.iso) and ROMs are gitignored — supply your own.

Not every large stream is game footage. 00216 is the feature with a burned-in commentary picture-in-picture and 00215 is the commentary itself — the two largest files on the disc. The clean 9.4-minute animation is 00223. See FINDINGS 25.1 before running any size-ranked survey.
